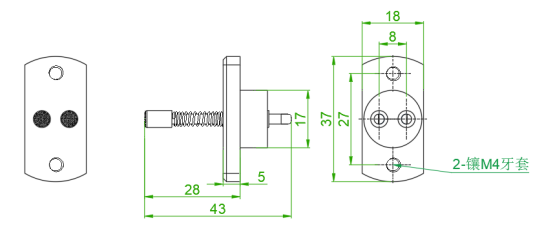

| Two-needle probe assembly | |
| Size: | 43*37*18mm |
| Main Material: | Beryllium copper |
| Applicable: | Square case power battery |
| Working Current: | 0～6A |
| Fixture Resistance: | ≤5mΩ |
| Temperature: | ≤100℃ |
| Elastic Parameters: | The pressure can reach 4N～6N ,when the current needle is compressed 5 mm. |
| Plating: | Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um. |
