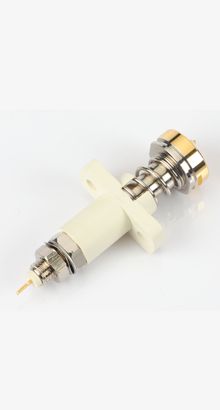

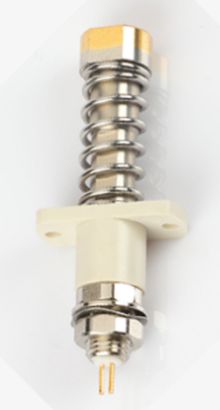

| Knife Probe | GP-11613 |

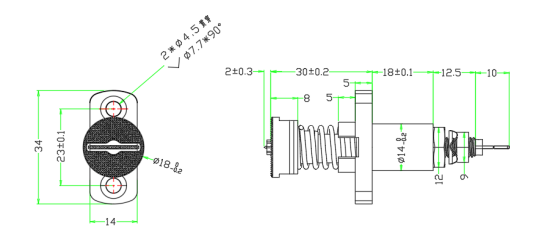

| Size: | 72.5*34*14mm |
| Main Material: | Beryllium copper |
| Applicable: | Square case power battery |
| Working Current: | 0～30A |
| Fixture Resistance: | ≤0.5mΩ |
| Temperature: | ≤120℃ |
| Elastic Parameters: | The pressure is 6～7N when the voltage needle is compressed 2 mm and 50N ± 15% when the current needle is compressed 5mm. |
| Plating: | Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um. |
